Heavy-duty 500kg dual stage transmission jack — extended lift range with precise hydraulic control for professional workshop use.
The Taurus Legend 500kg Dual Stage Transmission Jack is designed for safe, controlled lifting and positioning of transmissions during servicing, repairs, and installation.
Featuring a dual stage hydraulic lifting system, this jack provides an extended lift range, making it ideal for use with hoists and raised vehicles. The foot pedal operation allows hands-free lifting, improving control and efficiency during gearbox handling.
Built with a heavy-duty steel frame and fitted with swivel castors, it delivers durability, stability, and smooth mobility in workshop environments.
✔ Professional Grade: Dual stage lifting provides extended height range and improved versatility for transmission work.
Key Features
| ✔ 500kg Load Capacity Suitable for most passenger vehicle transmissions. | ✔ Dual Stage Hydraulic System Extended lifting range for higher working positions. |
| ✔ Foot Pedal Operation Hands-free lifting for better control and positioning. | ✔ Adjustable Saddle Improved positioning accuracy during installation. |
| ✔ Smooth Lifting & Lowering Controlled hydraulic movement for safer operation. | ✔ Heavy-Duty Steel Construction Built for durability and workshop use. |
Why Choose This Dual Stage Transmission Jack?
Compared with one-stage transmission jacks, this dual stage design provides a significantly greater lifting range, making it more suitable for professional workshop environments and vehicles on hoists.
It allows easier alignment and positioning of transmissions during installation, helping improve efficiency and safety.
Specifications
| Product Type | Dual Stage Transmission Jack |
| Capacity | 500kg |

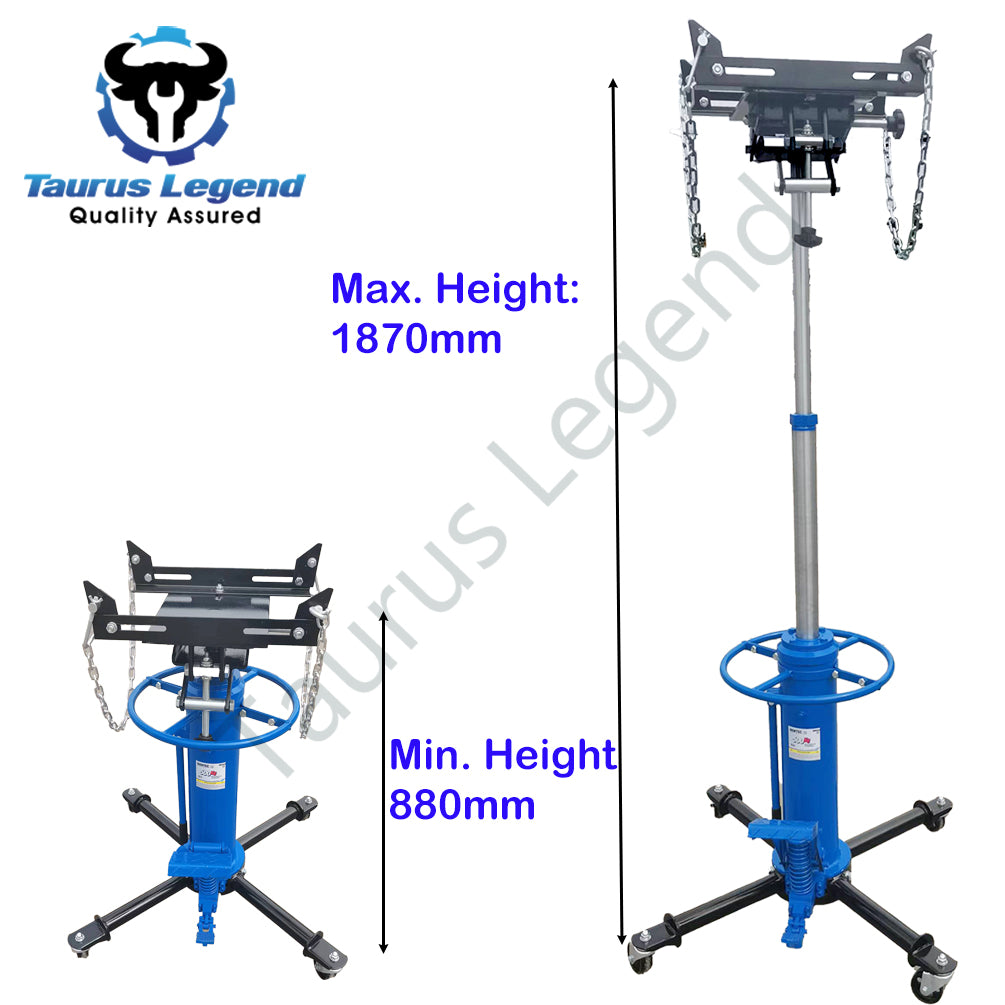

| Minimum Height | 880mm |
| Maximum Height | 1870mm |
| First Stage Stroke | 495mm |
| Second Stage Stroke | 495mm |
| Operation | Hydraulic foot pedal |
| Application | Transmission and gearbox lifting |
| Package Weight | 85kg |
Ideal Applications
- Transmission removal and installation
- Gearbox servicing and repairs
- Clutch replacement work
- Automotive workshops and service centres
- Home garage mechanical work
Safety Notes
- Use only on flat and stable surfaces
- Ensure load is properly balanced before lifting
- Do not exceed 500kg rated capacity
- Always follow workshop safety procedures
