20 Ton Hydraulic Bottle Jack

A compact 20 ton hydraulic bottle jack for compatible heavy vehicles, trailers, machinery and workshop lifting tasks. The TL0220 combines a 20,000kg rated capacity with a 244mm closed height, 145mm hydraulic lift and 60mm screw extension. A carry handle helps with transport and storage, while the built-in safety valve helps protect the hydraulic system from overload.

Before choosing this jack

Capacity alone does not determine whether a bottle jack fits a vehicle. Check the required lifting capacity, the 244mm minimum clearance, the vehicle manufacturer's approved lifting points and the height needed for your task. Never rely on a hydraulic jack as the only support beneath a raised vehicle; use correctly rated support stands on a firm, level surface.

Key features

• 20 ton (20,000kg) rated lifting capacity
• 145mm hydraulic lifting travel
• 60mm adjustable screw extension

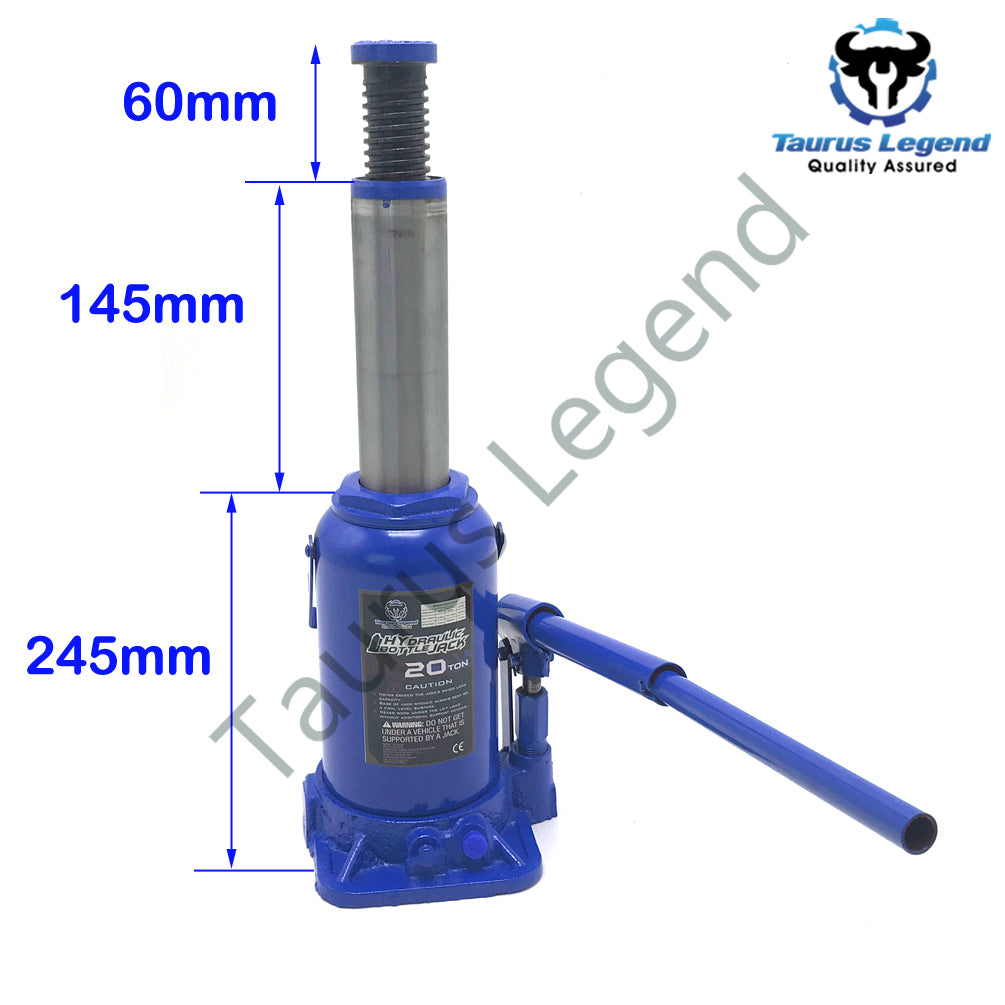

• 244–450mm overall height range
• Steel construction with a broad base

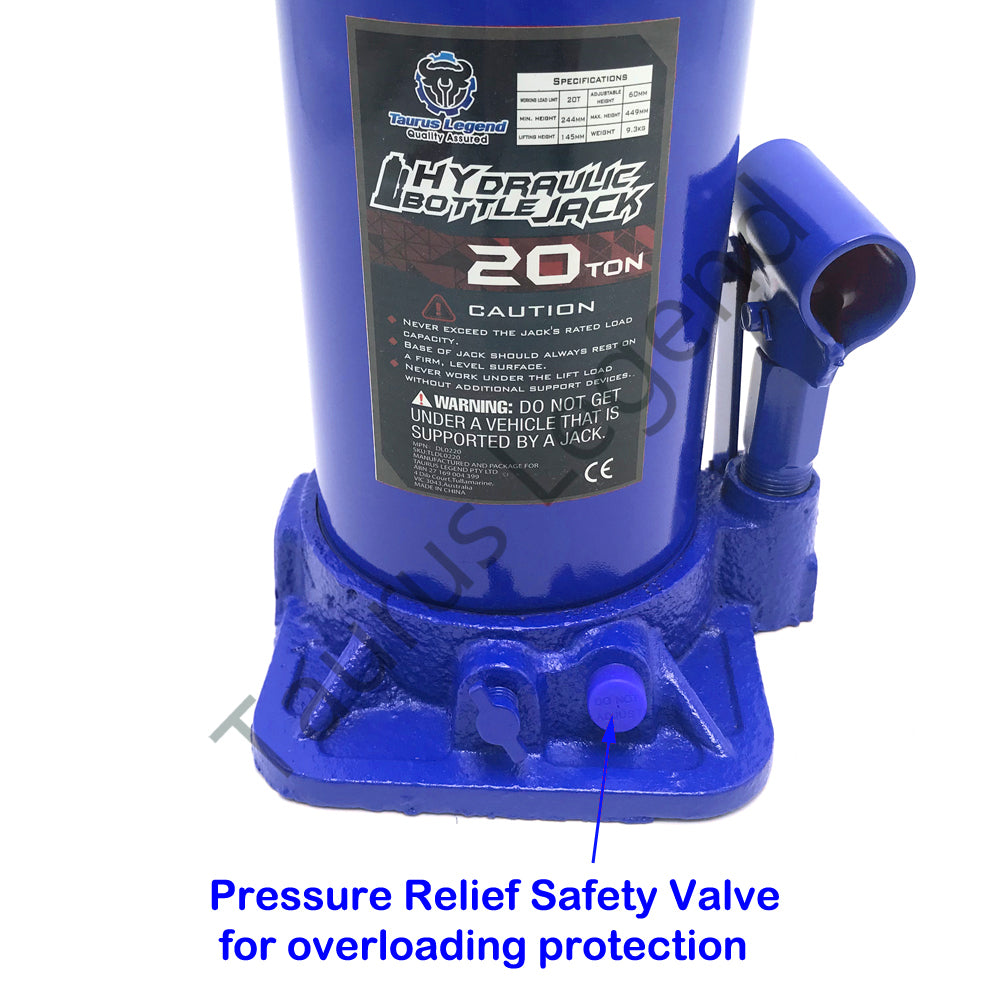

• Built-in safety valve and carry handle

Product details

• SKU: TL0220
• Rated capacity: 20 ton / 20,000kg
• Minimum height: 244mm
• Maximum height: 450mm
• Hydraulic lifting travel: 145mm
• Screw extension: 60mm
• Product weight: 10kg
• Carry handle: Yes
• Safety valve: Yes

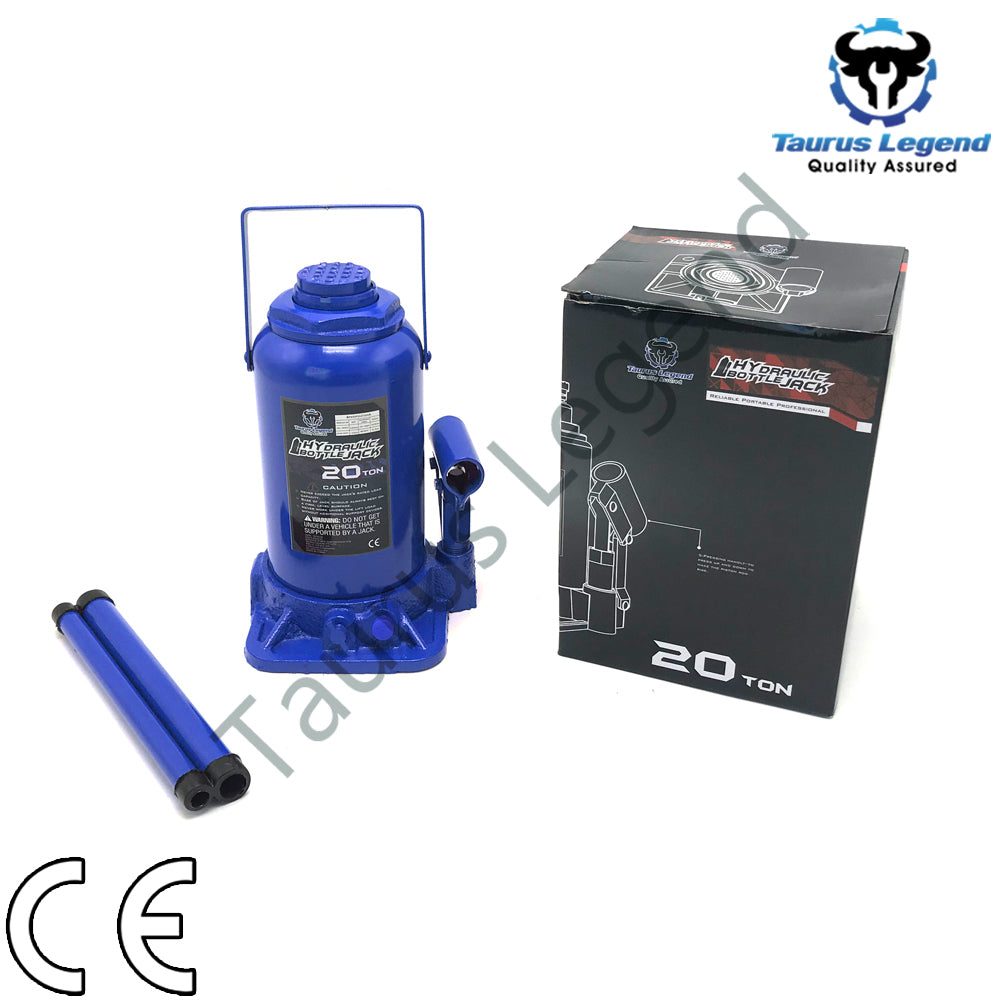

Package contents

• 20 ton hydraulic bottle jack × 1

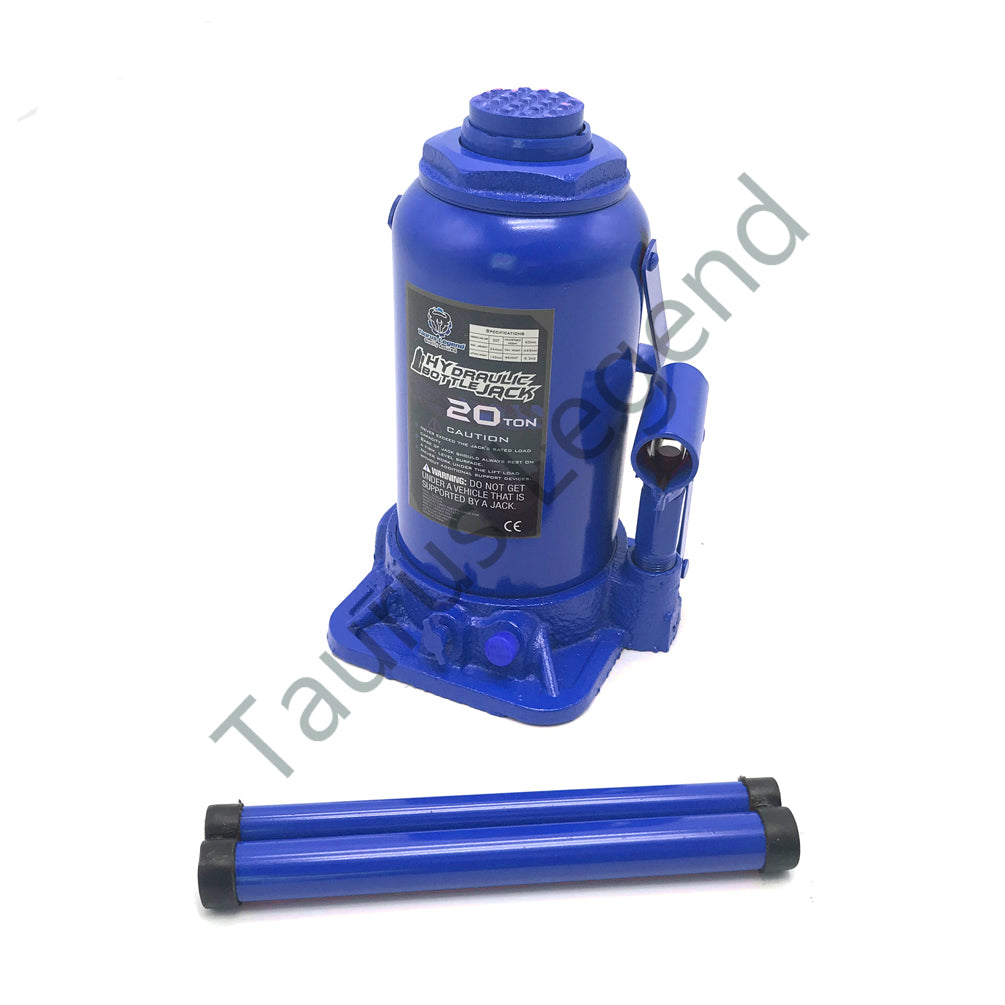

• Cranking stick sections × 2
• English instruction manual × 1

Safe use

Inspect the jack before each use and place it upright on a firm, level, load-bearing surface. Position it only at an approved lifting point, keep within the rated capacity and transfer the load to suitable stands before working near or beneath the raised vehicle or equipment.

Not sure which capacity suits your job? Read 10 ton vs 20 ton bottle jacks and our bottle jack selection guide, or browse all bottle jacks.
